Multi Port Cable Assembly with very small pitch : TMNP series
Product Inquiry

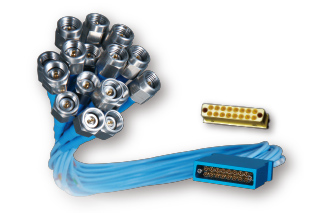

The TMNP Series 16-port cable connector assembly is an assembly with very small pitch. This assembly is capable of high-speed transmission throughout a range 67GHz. Through this assembly, Totoku contributes to increased high efficiency for the evaluation boards and development of IC chip suppliers.
*Wavemolle is a trademark of TOTOKU INC.
Cable design
TCF128 is the cable designed for this assembly. The cable is low-less, low-reflection, and highly flexible. It is capable of transmission in a range of 67GHz or more.
Specification
| Center conductor | Insulator | Outer conductor | Jacket | ||||
|---|---|---|---|---|---|---|---|
| Material | Diameter | Material | Material | Diameter | Material | Diameter | |
| TCF128 | SPC | 1/0.287mm | PTFE | SPC tape and braid | 1.28 | FEP(Blue) | 1.6 |
Assembly
※we support the 16-pin design, while the 8-pin design currently in development.
Electric characteristic (typical)
※Values within the performance charts are typical values, not guaranteed values.
